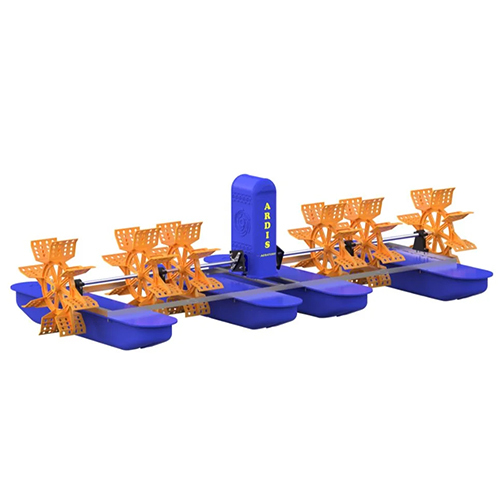

3 HP 6 Paddle Wheel Aerator

About 3 HP 6 Paddle Wheel Aerator

Technical Specifications

- Oxygen Transfer Rate: 4.5 kg/h

- Power Consumption: 3.6 Amps

- Input Power: 440 volts, 50 Hz

- Motor: 4 pole, 1440 R.P.M

- Gear Box: 1: 12 reducer (120 R.P.M)

- Material: Made with 100% virgin materials

- Manufacturing: All components are made in India

- Warranty: 1-year replacement warranty on all parts (excluding motor)

Key Benefits of the 3 HP 6-Paddle Wheel Aerator

- Enhanced Oxygen Levels: The 3 HP motor and 6-paddle design significantly increase oxygenation, improving pond conditions.

- Improved Water Quality: Helps prevent water stagnation, supporting a cleaner and healthier environment for aquatic life.

- User-Friendly: Designed for easy installation and operation, making it ideal for large aquaculture ponds.

Product Details

| Component| Material| Quantity |

|-------------------|----------------------|----------|

| Floats| HDPE| 4|

| Motor Cover| HDPE| 1|

| Motor| 1 HP| 1|

| Gear Box| Bevel Gear| 1|

| Impellers| PPCP| 6|

| Frame| SS 304/FRP| 1|

| Shaft| SS 304| 2|

| Shaft Supporter| Nylon| 4|

| Shaft Couplings| Cast Iron| 2|

| Nuts & Bolts| SS 304| 1 set|

Invest in the 3 HP 6-Paddle Wheel Aerator to optimize oxygenation, improve water quality, and promote a healthier aquatic ecosystem.
